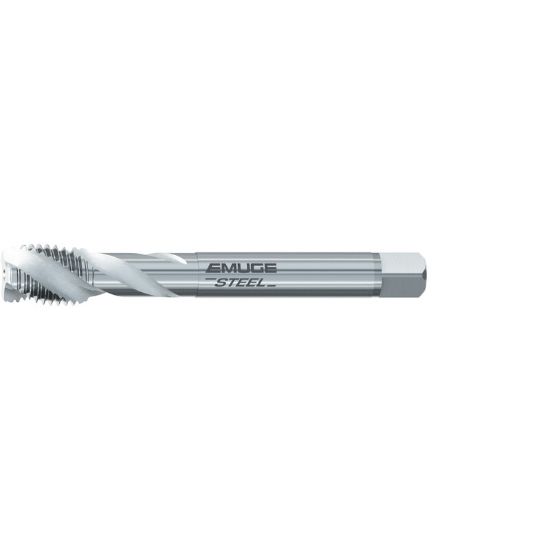

EMUGE C0501000.5070 Tap 1-20.00TPI Mod Bottom NF/UNF/UNEF DIN/DIN 2.0P-3.0P Carbide HSSE

ISO: C0501000.5070

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0501000.5070
Delivery date: 3-5 days
$292.98

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.7080 17.98MM
Thread Pitch 20.00TPI
Tap Chamfer 2.0P-3.0P
Thread Size 1"
Flute Direction R - Right
Length Type Standard
Thread Limit 2B
Overall Len 5.5118 140.00MM
Thread Type NF/UNF/UNEF
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.9457 24.02MM - 0.9606 24.40MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tool Material Steel
Tap Square 0.5700
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
