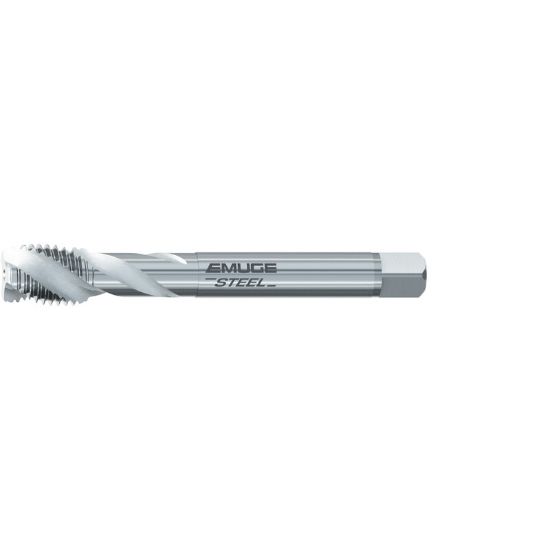

EMUGE C0501000.5064 Tap 5/8-24.00TPI Mod Bottom NF/UNF/UNEF DIN/DIN 2.0P-3.0P Carbide HSSE

ISO: C0501000.5064

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0501000.5064
Delivery date: 3-5 days
$162.21

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 3.9370 100.00MM
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard DIN/DIN
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Drill Range 0.5799 14.73MM - 0.5921 15.04MM
Tap Type Mod Bottom
Thread Size 5/8"
Thread Limit 2B
Cut Rating <42HRC Steel, Stainless Steel
Tap Square 0.3540
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
