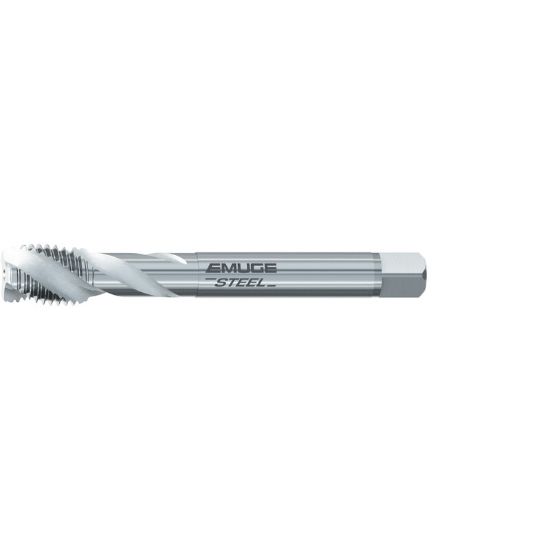

EMUGE C0501000.5063 Tap 9/16-24.00TPI Mod Bottom NF/UNF/UNEF DIN/DIN 2.0P-3.0P Cobalt HSSE

ISO: C0501000.5063

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0501000.5063
Delivery date: 3-5 days
$160.17

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction R - Right
Drill Range 0.5170 13.13MM - 0.5300 13.46MM
Length Type Standard
Tool Material Steel
Overall Len 3.9370 100.00MM
Cut Rating <42HRC Steel, Stainless Steel
Thread Limit 2B
Shank/Pilot Dia 0.4330 11.00MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Thread Size 9/16"
Dimension Standard DIN/DIN
Tap Square 0.3540
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
