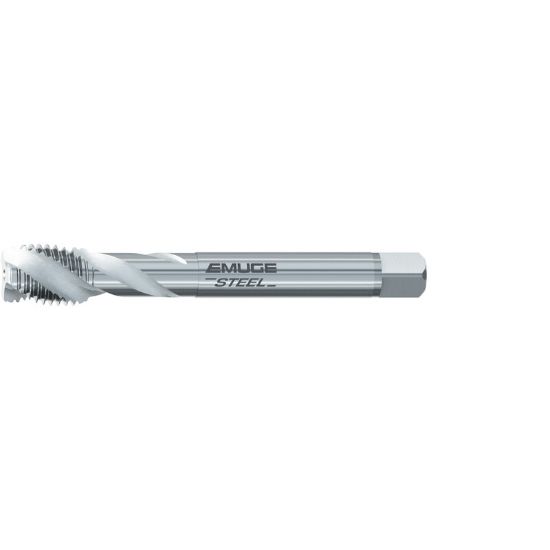

EMUGE C0501000.5059 Tap 5/16-32.00TPI Mod Bottom NF/UNF/UNEF DIN/DIN 2.0P-3.0P Carbide HSSE

ISO: C0501000.5059

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0501000.5059
Delivery date: 3-5 days
$74.87

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Limit 2B
Overall Len 3.1496 80.00MM
Tool Material Steel
Dimension Standard DIN/DIN
Machine Side Connection Type Tap Collet
Drill Range 0.2787 7.08MM - 0.2878 7.31MM
Tap Type Mod Bottom
Cut Rating <42HRC Steel, Stainless Steel
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size 5/16"
Flute Direction R - Right
Tap Square 0.1920
Length Type Standard
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
