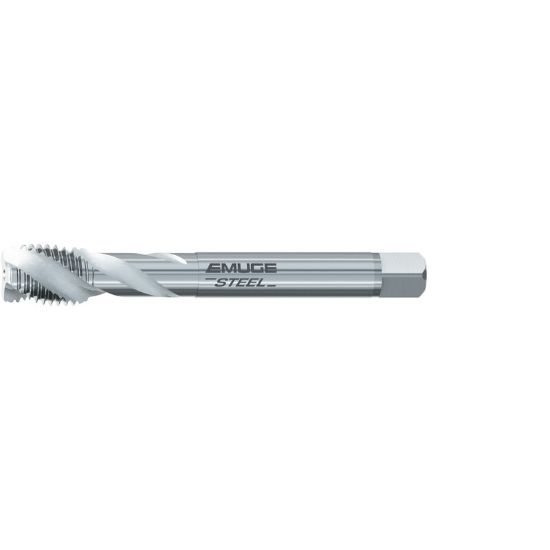

EMUGE C0501000.4050 Tap 2-11.00TPI Pipe BSP DIN/DIN 2.0P-3.0P HSSE

ISO: C0501000.4050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0501000.4050
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Package Size 1
Dimensional Specifications
Thread Type BSP
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Drill Range 2.2441 57.00MM
Dimension Standard DIN/DIN
Shank/Pilot Dia 1.7710 44.98MM
Overall Len 8.6614 220.00MM
Thread Pitch 11.00TPI
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Size 2"
Cut Rating <40HRC Steel, Stainless Steel
Tap Square 1.3770
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
