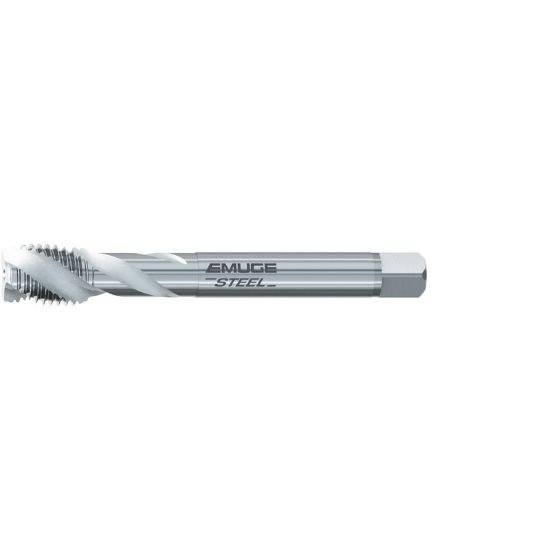

Picture of Emuge C0501000.5066 Tap 3/4-20.00TPI Mod Bottom NF/UNF/UNEF DIN/DIn 2.0P-3.0P Carbide HSSE

Emuge C0501000.5066 Tap 3/4-20.00TPI Mod Bottom NF/UNF/UNEF DIN/DIn 2.0P-3.0P Carbide HSSE

Part Number: EMUC0501000.5066 ISO: C0501000.5066
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$241.25
SKU: 1158898

Description

EMUGE C0501000.5066 3/4"x20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated 2B NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.3307 110.00MM
Shank/Pilot Dia 0.5510 14.00MM
Thread Pitch 20.00TPI
Thread Size 3/4"
Tap Drill Range 0.6957 17.67MM - 0.7106 18.05MM
Tap Square 0.4330
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
