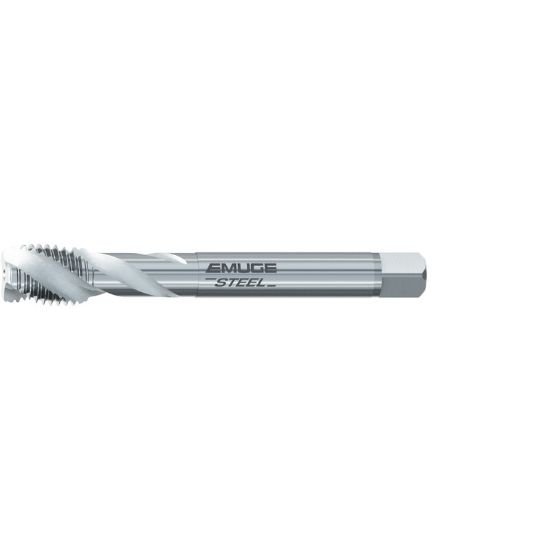

Picture of Emuge C0501000.5064 Tap 5/8-24.00TPI Mod Bottom NF/UNF/UNEF DIN/DIn 2.0P-3.0P Carbide HSSE

Emuge C0501000.5064 Tap 5/8-24.00TPI Mod Bottom NF/UNF/UNEF DIN/DIn 2.0P-3.0P Carbide HSSE

Part Number: EMUC0501000.5064 ISO: C0501000.5064
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$190.79
SKU: 1158897

Description

EMUGE C0501000.5064 5/8"x24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated 2B NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 24.00TPI
Thread Size 5/8"
Tap Drill Range 0.5799 14.73MM - 0.5921 15.04MM
Tap Square 0.3540
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
