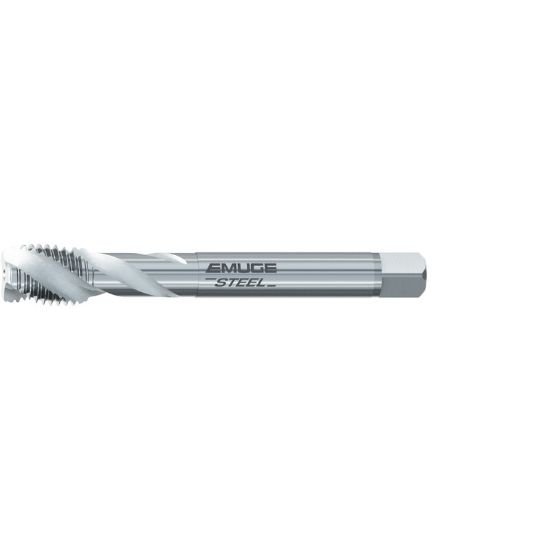

Picture of Emuge C0501000.5063 Tap 9/16-24.00TPI Mod Bottom NF/UNF/UNEF DIN/DIn 2.0P-3.0P Cobalt HSSE

Emuge C0501000.5063 Tap 9/16-24.00TPI Mod Bottom NF/UNF/UNEF DIN/DIn 2.0P-3.0P Cobalt HSSE

Part Number: EMUC0501000.5063 ISO: C0501000.5063
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$188.40
SKU: 1158896

Description

EMUGE C0501000.5063 9/16"x24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated 2B NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.4330 11.00MM
Thread Pitch 24.00TPI
Thread Size 9/16"
Tap Drill Range 0.5170 13.13MM - 0.5300 13.46MM
Tap Square 0.3540
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
