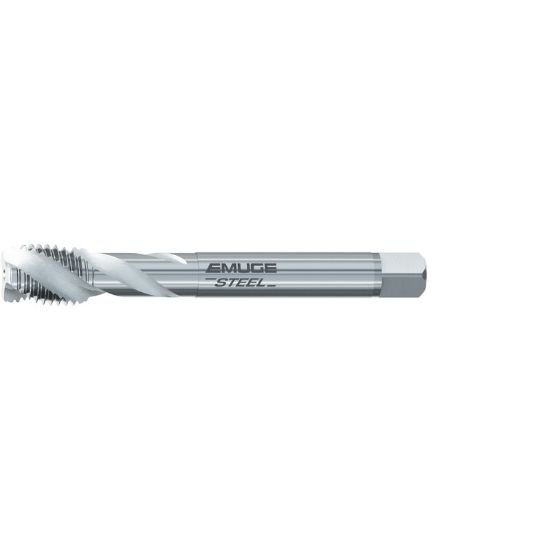

Picture of Emuge C0501000.5061 Tap 7/16-28.00TPI Mod Bottom NF/UNF/UNEF DIN/DIn 2.0P-3.0P Cobalt HSSE

Emuge C0501000.5061 Tap 7/16-28.00TPI Mod Bottom NF/UNF/UNEF DIN/DIn 2.0P-3.0P Cobalt HSSE

Part Number: EMUC0501000.5061 ISO: C0501000.5061
Looking for alternatives…
Find a drill for this tap 7/16" × 28.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1158894
Vendor: Sussex Tool and Supply
$153.36

Description

EMUGE C0501000.5061 7/16"x28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated 2B NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.5433 90.00MM
Shank/Pilot Dia 0.3140 7.98MM
Thread Pitch 28.00TPI
Thread Size 7/16"
Tap Drill Range 0.3988 10.13MM - 0.4094 10.40MM
Tap Square 0.2440
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
