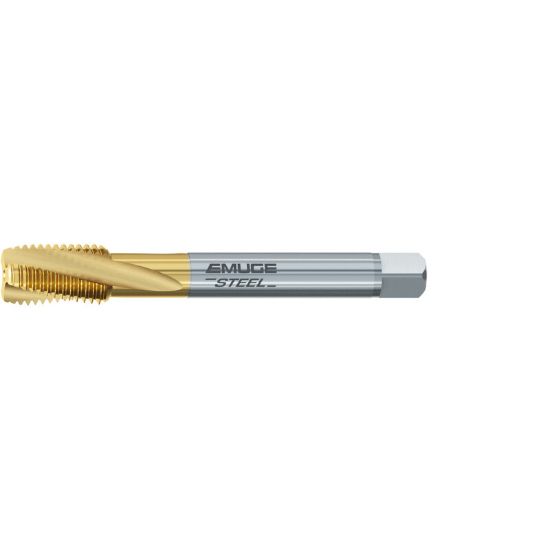

EMUGE C0461400.0118 Tap M18-2.50MM Bottoming Metric DIN/DIN 1.5P-2.0P Carbide HSSE TiN

ISO: C0461400.0118

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0461400.0118
Delivery date: 3-5 days
$226.60

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Application Cut Tapping, Bottom Tapping, Tapping
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 2.50MM
Thread Type Metric
Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Thread Size M18
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Dimension Standard DIN/DIN
Overall Len 4.9213 125.00MM
Tool Material Steel
Shank/Pilot Dia 0.5510 14.00MM
Tap Square 0.3600
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
