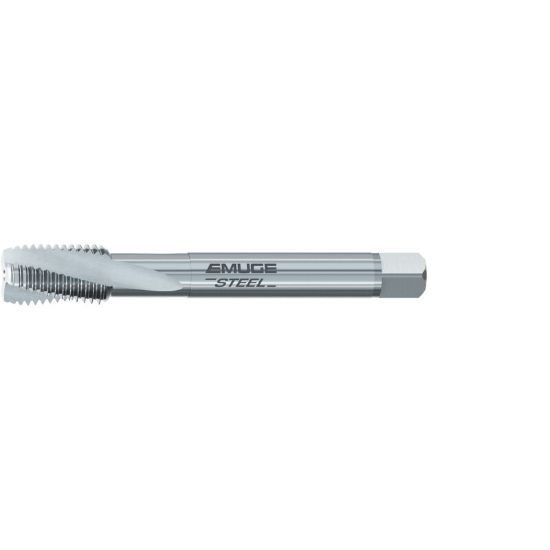

EMUGE C0461000.5070 Tap 1-20.00TPI Bottoming NF/UNF/UNEF DIN/DIN 1.5P-2.0P Carbide HSSE

ISO: C0461000.5070

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0461000.5070
Delivery date: 3-5 days
$333.92

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.9457 24.02MM - 0.9606 24.40MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Pitch 20.00TPI
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Thread Type NF/UNF/UNEF
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.7080 17.98MM
Thread Size 1"
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Tap Square 0.5700
Overall Len 5.5118 140.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
