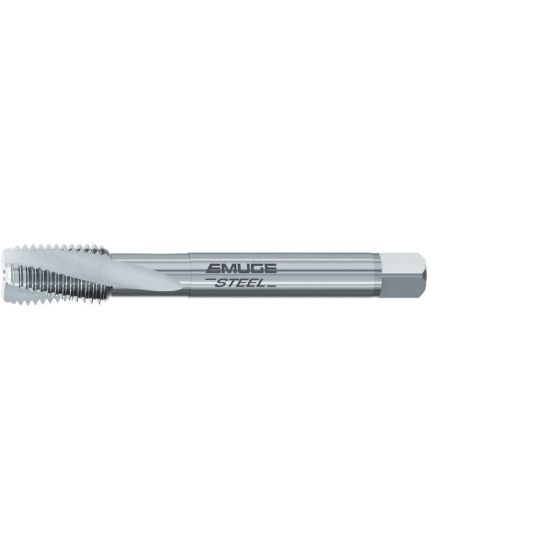

EMUGE C0461000.5061 Tap 7/16-28.00TPI Bottoming NF/UNF/UNEF DIN/DIN 1.5P-2.0P Carbide HSSE

ISO: C0461000.5061

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0461000.5061
Delivery date: 3-5 days
$143.42

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard DIN/DIN
Flutes/Inserts 3
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.3988 10.13MM - 0.4094 10.40MM
Length Type Standard
Tool Material Steel
Tap Type Bottoming
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Thread Limit 6H
Overall Len 3.5433 90.00MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Pitch 28.00TPI
Shank/Pilot Dia 0.3140 7.98MM
Tap Square 0.2440
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
