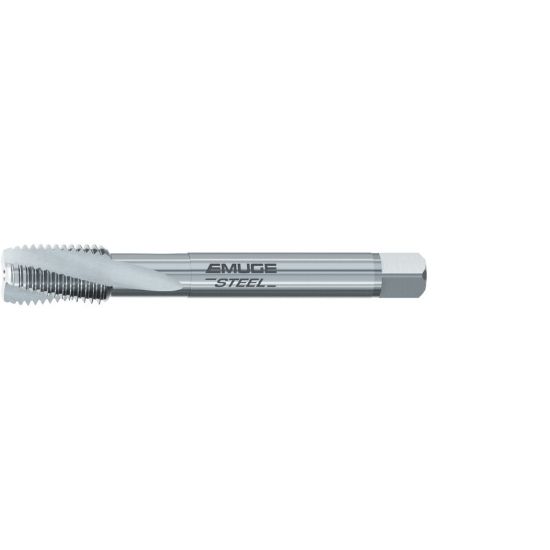

EMUGE C0461000.5060 Tap 3/8-32.00TPI Bottoming NF/UNF/UNEF DIN/DIN 1.5P-2.0P Carbide HSSE

ISO: C0461000.5060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0461000.5060
Delivery date: 3-5 days
$134.26

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Thread Size 3/8"
Thread Limit 6H
Overall Len 3.5433 90.00MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Type Bottoming
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tap Square 0.2160
Tool Material Steel
Drill Range 0.3409 8.66MM - 0.3504 8.90MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2750 6.99MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
