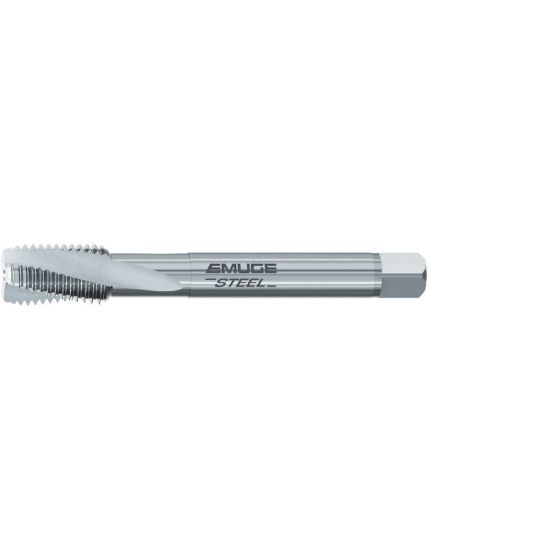

EMUGE C0461000.5058 Tap 1/4-32.00TPI Bottoming NF/UNF/UNEF DIN/DIN 1.5P-2.0P Carbide HSSE

ISO: C0461000.5058

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0461000.5058
Delivery date: 3-5 days
$80.39

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Cut Tapping
Package Size 1
Made In USA No
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Thread Size 1/4"
Overall Len 3.1496 80.00MM
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1770 4.50MM - #16
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Limit 6H
Tap Square 0.1330
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Machine Side Connection Type Tap Collet
Dimension Standard DIN/DIN
Flutes/Inserts 3
Drill Range 0.2157 5.48MM - 0.2256 5.73MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
