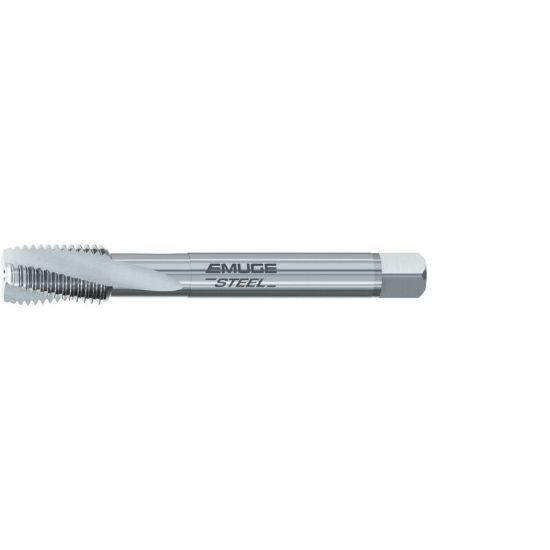

EMUGE C0461000.4042 Tap 1-11.00TPI Pipe BSP DIN/DIN 1.5P-2.0P HSSE

ISO: C0461000.4042

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0461000.4042
Delivery date: 3-5 days
$437.54

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Pipe Tapping, Tapping
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Type BSP
Tool Material Steel
Machine Side Connection Type Tap Collet
Drill Range 1.2106 30.75MM
Tap Type Pipe
Thread Pitch 11.00TPI
Thread Limit PIPE
Overall Len 6.2992 160.00MM
Tap Style Pipe Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Size 1"
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.9840 24.99MM
Tap Square 0.7870
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
