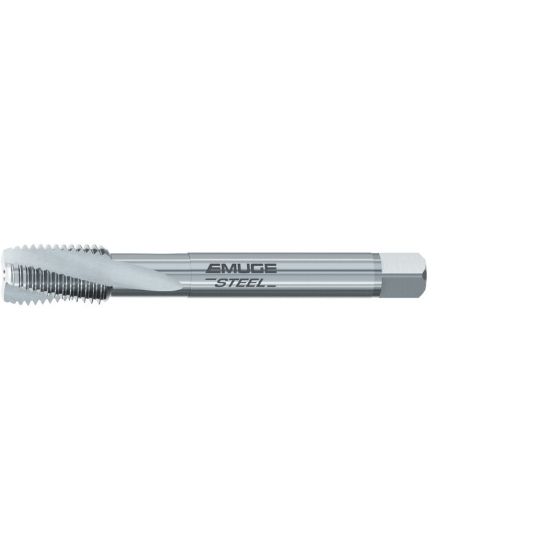

EMUGE C0461000.4040 Tap 3/4-14.00TPI Pipe BSP DIN/DIN 1.5P-2.0P HSSE

ISO: C0461000.4040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0461000.4040
Delivery date: 3-5 days
$289.60

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type BSP
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Drill Range 0.9646 24.50MM
Length Type Standard
Tool Material Steel
Thread Size 3/4"
Dimension Standard DIN/DIN
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Tap Square 0.6290
Tap Chamfer 1.5P-2.0P
Tap Type Pipe
Shank/Pilot Dia 0.7870 19.99MM
Thread Pitch 14.00TPI
Overall Len 5.5118 140.00MM
Tap Style Pipe Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
