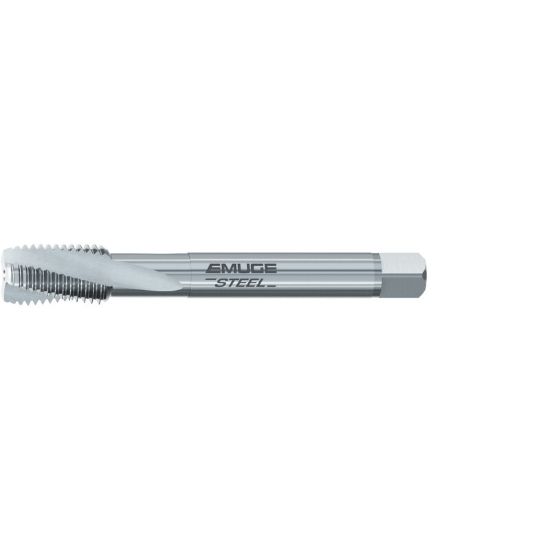

EMUGE C0461000.4039 Tap 5/8-14.00TPI Pipe BSP DIN/DIN 1.5P-2.0P Carbide HSSE

ISO: C0461000.4039

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0461000.4039
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Pipe Tapping, Tapping
Made In USA No
Package Size 1
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Dimension Standard DIN/DIN
Overall Len 4.9213 125.00MM
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Size 5/8"
Thread Pitch 14.00TPI
Thread Type BSP
Length Type Standard
Tool Material Steel
Drill Range 0.8268 21.00MM
Tap Square 0.5700
Cut Rating <40HRC Steel, Stainless Steel
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Chamfer 1.5P-2.0P
Shank/Pilot Dia 0.7600 19.30MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
