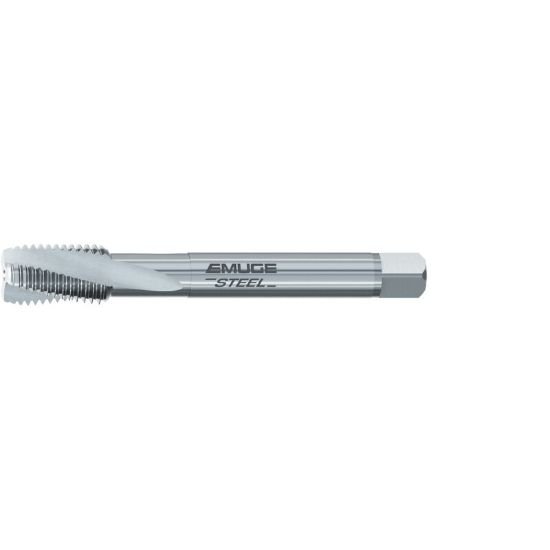

Picture of Emuge C0461000.5061 Tap 7/16-28.00TPI Bottoming NF/UNF/UNEF DIN/DIn 1.5P-2.0P Carbide HSSE

Emuge C0461000.5061 Tap 7/16-28.00TPI Bottoming NF/UNF/UNEF DIN/DIn 1.5P-2.0P Carbide HSSE

Part Number: EMUC0461000.5061 ISO: C0461000.5061
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1158329
Vendor: Sussex Tool and Supply
$168.68

Description

EMUGE C0461000.5061 7/16"x28.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 6H NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 3.5433 90.00MM
Shank/Pilot Dia 0.3140 7.98MM
Flutes/Inserts 3
Thread Pitch 28.00TPI
Thread Size 7/16"
Tap Drill Range 0.3988 10.13MM - 0.4094 10.40MM
Tap Square 0.2440
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
