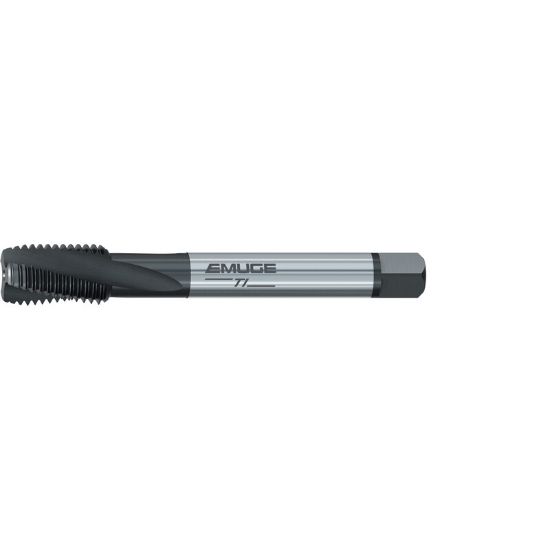

EMUGE C0456001.0130 Tap M30-3.50MM Mod Bottom Metric DIN/DIN 2.0P-3.0P Carbide HSSE Nitride + Steam Oxide

ISO: C0456001.0130

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0456001.0130
Delivery date: 3-5 days
$544.05

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating Nitride + Steam Oxide
Shipping State Massachusetts
Dimensional Specifications
Thread Pitch 3.50MM
Flute Direction R - Right
Length Type Standard
Thread Limit 6H
Tap Chamfer 2.0P-3.0P
Tap Square 0.7660
Thread Type Metric
Cut Rating High Temp, Inconel, Titanium
Drill Range 1.0583 26.88MM - 1.0890 27.66MM
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.8661 22.00MM
Overall Len 7.0866 180.00MM
Flutes/Inserts 3
Thread Size M30
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
