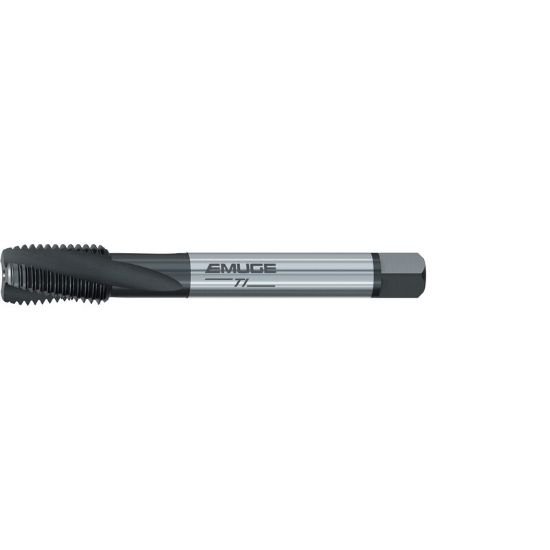

Emuge C0456001.0124 Tap M24-3.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Carbide HSSE Nitride + Steam Oxide

Part Number: EMUC0456001.0124 ISO: C0456001.0124

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159589
$244.42
EMUGE C0456001.0124 M24x3.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Nitride + Steam Oxide 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Nitride + Steam Oxide
Overall Length 6.2992 160.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7080 17.98MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 3.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M24
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.8087 20.54MM - 0.8201 20.83MM
Tap Square 0.5700
Tap Chamfer 2.0P-3.0P
