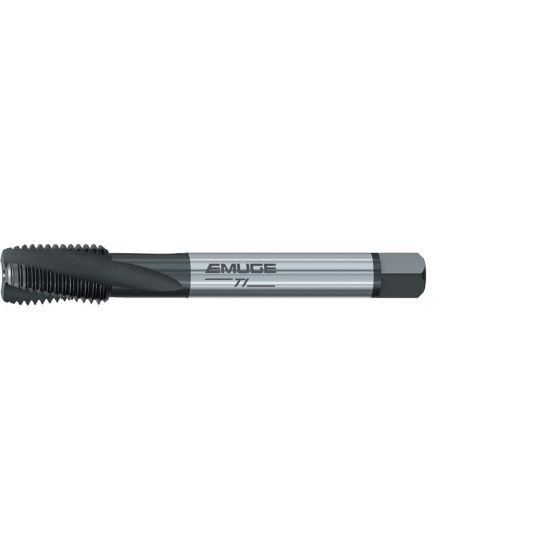

Picture of Emuge C0456001.0112 Tap M12-1.75mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSS HSSE Nitride + Steam Oxide

Emuge C0456001.0112 Tap M12-1.75mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSS HSSE Nitride + Steam Oxide

Part Number: EMUC0456001.0112 ISO: C0456001.0112
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M12 × 1.75MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1159586
Vendor: Sussex Tool and Supply
$106.79

Description

EMUGE C0456001.0112 M12x1.75MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Nitride + Steam Oxide 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.3307 110.00MM
Shank/Pilot Dia 0.3540 8.99MM
Flutes/Inserts 3
Thread Pitch 1.75MM
Thread Size M12
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tap Square 0.2750
Performance & Capacity
Cut Rating High Temp, Inconel, Titanium
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard DIN/DIN
