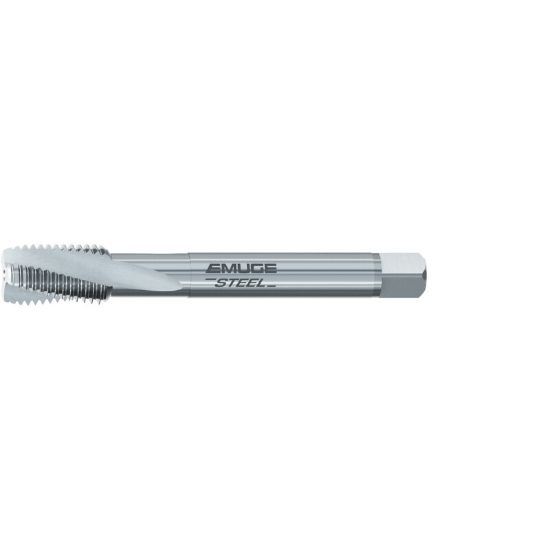

EMUGE C0451000.4045 Tap 1-3/8-11.00TPI Pipe BSP DIN/DIN 2.0P-3.0P HSSE

ISO: C0451000.4045

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0451000.4045
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Pitch 11.00TPI
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 1.4170 35.99MM
Drill Range 1.6437 41.75MM
Tap Type Pipe
Tool Material Steel
Thread Size 1-3/8"
Dimension Standard DIN/DIN
Overall Len 7.0866 180.00MM
Thread Type BSP
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Square 1.1410
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Only registered users can write reviews
