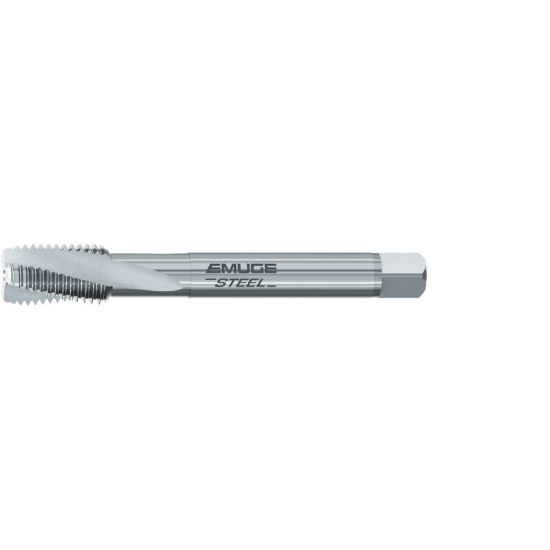

EMUGE C0451000.4043 Tap 1-1/8-11.00TPI Pipe BSP DIN/DIN 2.0P-3.0P HSSE

ISO: C0451000.4043

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0451000.4043
Delivery date: 3-5 days
$569.27

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Spiral Flute Pipe, Tapping
Package Size 1
Shipping State Massachusetts
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 1.3976 35.50MM
Tap Chamfer 2.0P-3.0P
Thread Pitch 11.00TPI
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Thread Size 1-1/8"
Machine Side Connection Type Tap Collet
Tap Type Pipe
Tool Material Steel
Shank/Pilot Dia 1.1020 27.99MM
Overall Len 6.6929 170.00MM
Dimension Standard DIN/DIN
Tap Square 0.8660
Thread Type BSP
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
