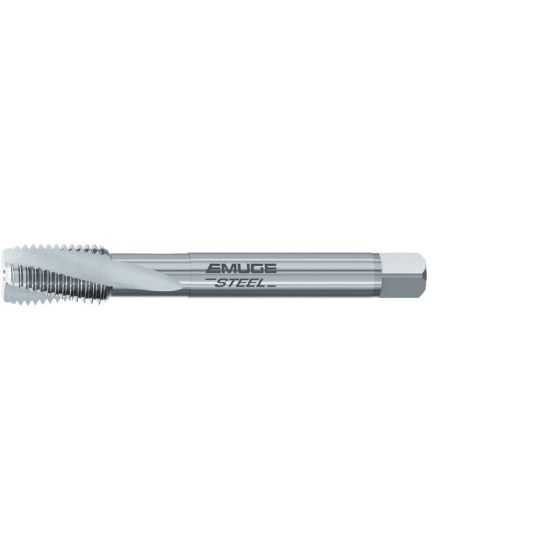

EMUGE C0451000.4038 Tap 1/2-14.00TPI Pipe BSP DIN/DIN 2.0P-3.0P Carbide HSSE

ISO: C0451000.4038

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0451000.4038
Delivery date: 3-5 days
$176.10

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating High Performance
Made In USA No
Package Size 1
Dimensional Specifications
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.6290 15.98MM
Tap Square 0.4720
Overall Len 4.9213 125.00MM
Drill Range 0.7480 19.00MM
Thread Pitch 14.00TPI
Thread Type BSP
Flute Direction R - Right
Length Type Standard
Cut Rating <40HRC Steel, Stainless Steel
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size 1/2"
Tool Material Steel
Dimension Standard DIN/DIN
Tap Type Pipe
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
