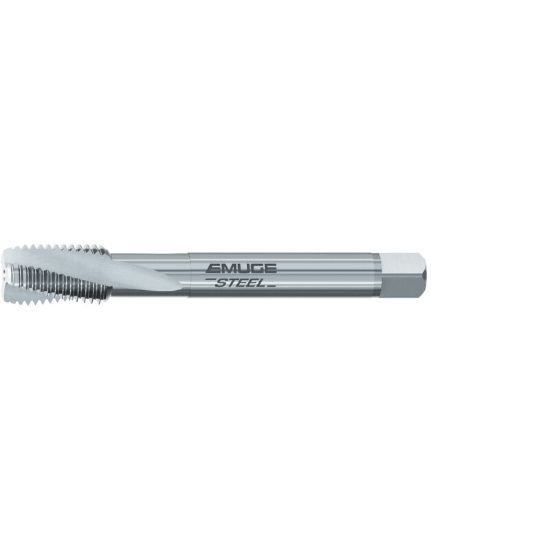

EMUGE C0451000.4036 Tap 1/4-19.00TPI Pipe BSP DIN/DIN 2.0P-3.0P HSSE

ISO: C0451000.4036

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0451000.4036
Delivery date: 3-5 days
$101.32

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Standard DIN/DIN
Flutes/Inserts 3
Shank/Pilot Dia 0.4330 11.00MM
Drill Range 0.4646 11.80MM
Thread Size 1/4"
Thread Type BSP
Tool Material Steel
Overall Len 3.9370 100.00MM
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 19.00TPI
Tap Square 0.3540
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
