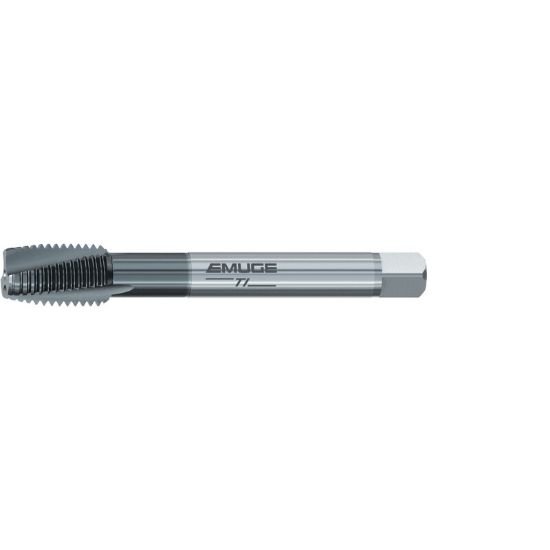

Picture of Emuge C0309601.0124 Tap Plug M24-3.00mm 6H Metric DIN/DIn HSSE TiCN

Emuge C0309601.0124 Tap Plug M24-3.00mm 6H Metric DIN/DIn HSSE TiCN

Part Number: EMUC0309601.0124 ISO: C0309601.0124

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159416
Vendor: Sussex Tool and Supply
$300.16
EMUGE C0309601.0124 M24x3.00MM Cut Spiral Point Plug 4P-5P HSSE TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating TICN
Overall Length 6.2992 160.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7080 17.98MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 3.00MM
Thread Type METRIC
Flute Direction LEFT
Thread Size M24
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.8087 20.54MM - 0.8201 20.83MM
Tap Square 0.5700
Tap Chamfer 4P-5P
