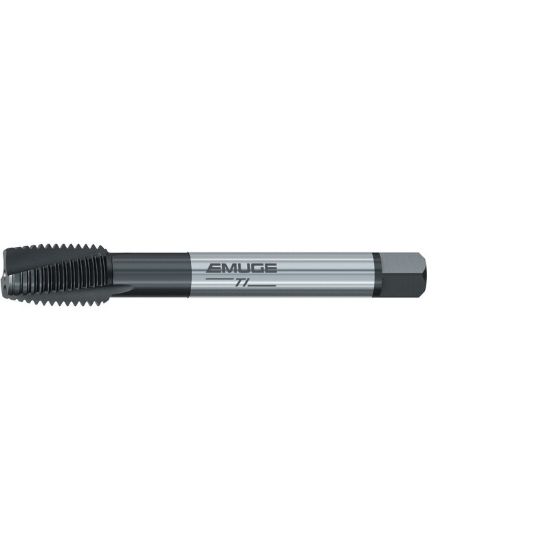

EMUGE C0306001.0116 Tap Plug M16-2.00MM 6H Metric DIN/DIN HSSE Nitride + Steam Oxide

ISO: C0306001.0116

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0306001.0116
Delivery date: 3-5 days
$145.01

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Performance Rating High Performance
Coating Nitride + Steam Oxide
Shipping State Massachusetts
Made In USA No
Package Size 1
Dimensional Specifications
Flute Direction L - Left
Shank/Pilot Dia 0.4720 11.99MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tool Material Steel
Tap Square 0.3600
Tap Chamfer 4P-5P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Size M16
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Length Type Standard
Thread Limit 6H
Overall Len 4.3307 110.00MM
Thread Pitch 2.00MM
Thread Type Metric
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
