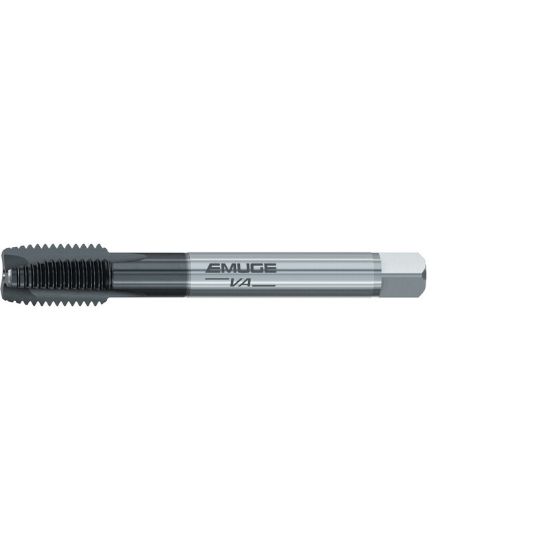

EMUGE C020C300.0301 Tap M12-1.00MM Plug Metric DIN/DIN 4P-5P Carbide HSSE GLT-1

ISO: C020C300.0301

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC020C300.0301
Delivery date: 3-5 days
$145.21

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating High Performance
Coating GLT-1
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Pitch 1.00MM
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Style Cut Spiral Point
Length Type Standard
Overall Len 4.3307 110.00MM
Thread Type Metric
Tap Type Plug
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Tool Material Steel
Tap Chamfer 4P-5P
Thread Limit 6H
Drill Range 0.4315 10.96MM - 0.4417 11.22MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
