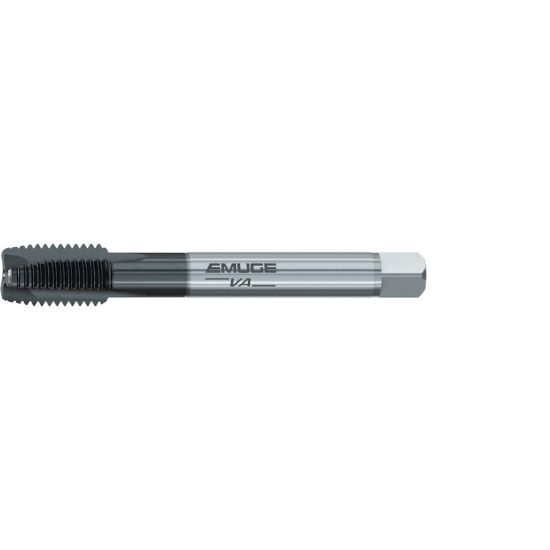

EMUGE C020C300.0111 Tap M11-1.50MM Plug Metric DIN/DIN 4P-5P Cobalt HSSE GLT-1

ISO: C020C300.0111

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC020C300.0111
Delivery date: 3-5 days
$147.82

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Coating GLT-1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Pitch 1.50MM
Tool Material Steel
Tap Chamfer 4P-5P
Dimension Standard DIN/DIN
Thread Limit 6H
Shank/Pilot Dia 0.3940 10.01MM
Thread Size M11
Machine Side Connection Type Tap Collet
Drill Range 0.3717 9.44MM - 0.3870 9.83MM
Tap Style Cut Spiral Point
Thread Type Metric
Overall Len 3.1560 80.16MM
Tap Type Plug
Cut Rating <42HRC Steel, Stainless Steel
Tap Square 0.3140
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
