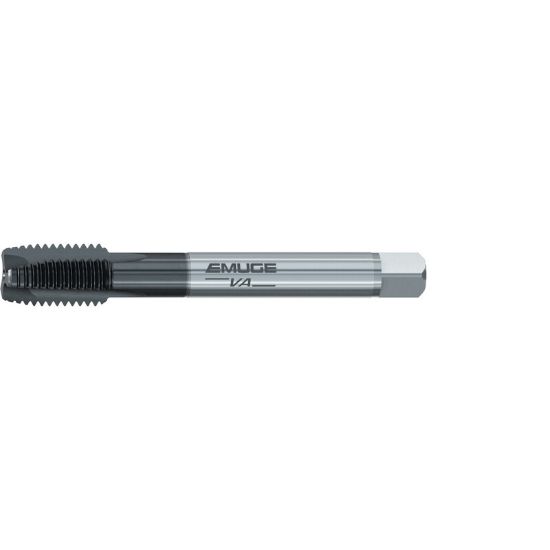

EMUGE C020C300.0080 Tap Plug M8-1.25MM 6H Metric DIN/DIN HSSE GLT-1

ISO: C020C300.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC020C300.0080
Delivery date: 3-5 days
$78.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating GLT-1
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Dimensional Specifications
Length Type Standard
Thread Limit 6H
Overall Len 3.5433 90.00MM
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 1.25MM
Dimension Standard DIN/DIN
Thread Size M8
Tap Square 0.2380
Tap Type Plug
Thread Type Metric
Tool Material Steel
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
