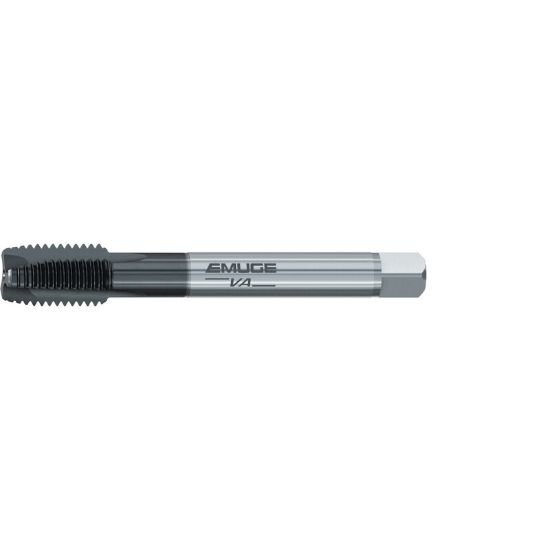

Picture of Emuge C020C300.0452 Tap M24-1.50mm Plug Metric DIN/DIn 4P-5P Carbide HSSE GLT-1

Emuge C020C300.0452 Tap M24-1.50mm Plug Metric DIN/DIn 4P-5P Carbide HSSE GLT-1

Part Number: EMUC020C300.0452 ISO: C020C300.0452

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1160211
Vendor: Sussex Tool and Supply
$297.18
EMUGE C020C300.0452 M24x1.50MM Cut Spiral Point Plug 4P-5P HSSE GLT-1 6H Metric Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Coating GLT-1
Overall Length 5.5118 140.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7080 17.98MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M24
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.8874 22.54MM - 0.8988 22.83MM
Tap Square 0.5700
Tap Chamfer 4P-5P
