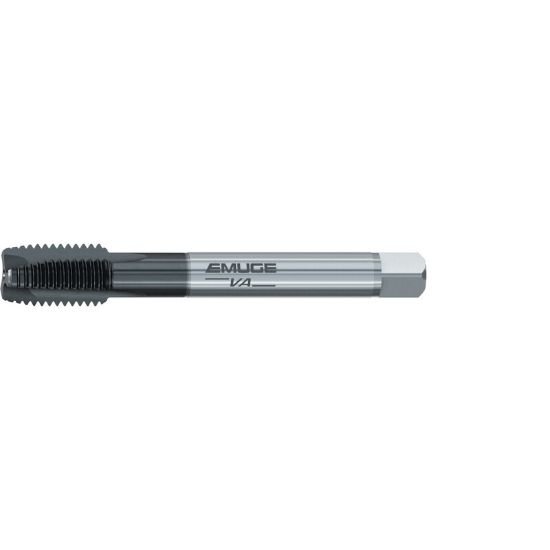

Picture of Emuge C020C300.0080 Tap Plug M8-1.25mm 6H Metric DIN/DIn HSSE GLT-1

Emuge C020C300.0080 Tap Plug M8-1.25mm 6H Metric DIN/DIn HSSE GLT-1

Part Number: EMUC020C300.0080 ISO: C020C300.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1160172
Vendor: Sussex Tool and Supply
$80.32
EMUGE C020C300.0080 M8x1.25MM Cut Spiral Point Plug 4P-5P HSSE GLT-1 6H Metric Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Coating GLT-1
Overall Length 3.5433 90.00MM
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Thread Size M8
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2380
Tap Chamfer 4P-5P
