  • EMUGE C020A601.0302 Tap M12-1.25MM Plug Metric DIN/DIN 4P-5P Carbide HSSE-Powder Metal GLT-1

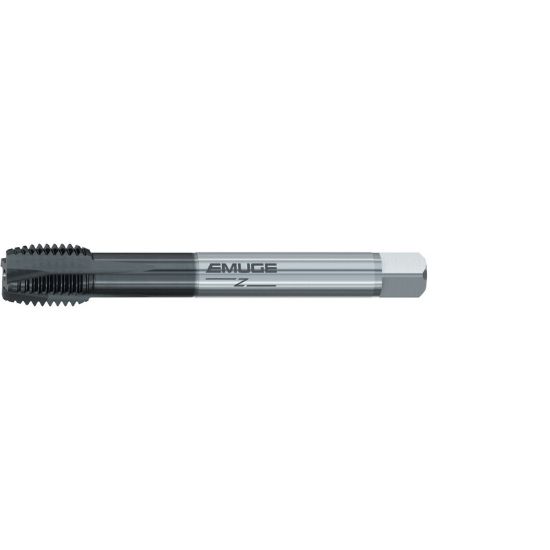

Picture of EMUGE C020A601.0302 Tap M12-1.25MM Plug Metric DIN/DIN 4P-5P Carbide HSSE-Powder Metal GLT-1

EMUGE C020A601.0302 Tap M12-1.25MM Plug Metric DIN/DIN 4P-5P Carbide HSSE-Powder Metal GLT-1

ISO: C020A601.0302

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC020A601.0302
Delivery date: 3-5 days
$113.07

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Coating GLT-1
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Style Cut Spiral Point
Thread Pitch 1.25MM
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Chamfer 4P-5P
Thread Limit 6H
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Size M12
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
