  • EMUGE C020A601.0301 Tap M12-1.00MM Plug Metric DIN/DIN 4P-5P Cobalt HSSE-Powder Metal GLT-1

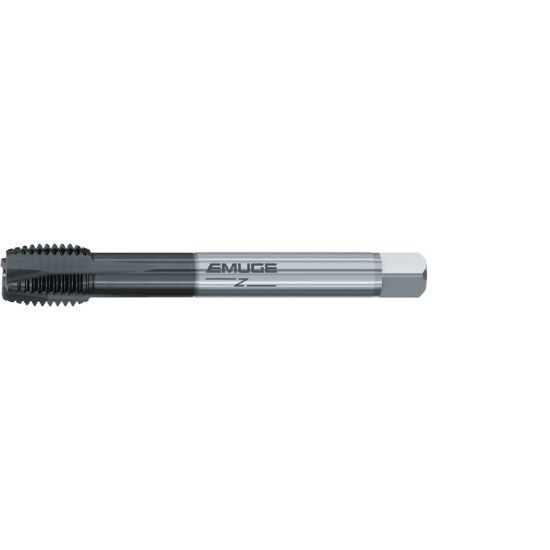

Picture of EMUGE C020A601.0301 Tap M12-1.00MM Plug Metric DIN/DIN 4P-5P Cobalt HSSE-Powder Metal GLT-1

EMUGE C020A601.0301 Tap M12-1.00MM Plug Metric DIN/DIN 4P-5P Cobalt HSSE-Powder Metal GLT-1

ISO: C020A601.0301

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC020A601.0301
Delivery date: 3-5 days
$118.59

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Products specifications
Attribute name Attribute value
General Product Information
Coating GLT-1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.4315 10.96MM - 0.4417 11.22MM
Tap Square 0.2750
Tool Material Steel
Tap Chamfer 4P-5P
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Type Metric
Tap Type Plug
Tap Style Cut Spiral Point
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Thread Limit 6H
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
