  • EMUGE C020A601.0112 Tap M12-1.75MM Plug Metric DIN/DIN 4P-5P HSS HSSE-Powder Metal GLT-1

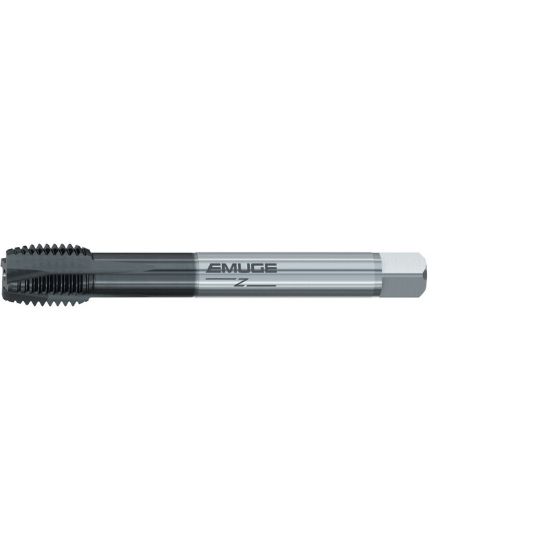

Picture of EMUGE C020A601.0112 Tap M12-1.75MM Plug Metric DIN/DIN 4P-5P HSS HSSE-Powder Metal GLT-1

EMUGE C020A601.0112 Tap M12-1.75MM Plug Metric DIN/DIN 4P-5P HSS HSSE-Powder Metal GLT-1

ISO: C020A601.0112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC020A601.0112
Delivery date: 3-5 days
$98.58

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Package Size 1
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Coating GLT-1
Dimensional Specifications
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 4.3307 110.00MM
Flutes/Inserts 4
Length Type Standard
Thread Type Metric
Tap Type Plug
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Thread Pitch 1.75MM
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Square 0.2750
Tool Material Steel
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
