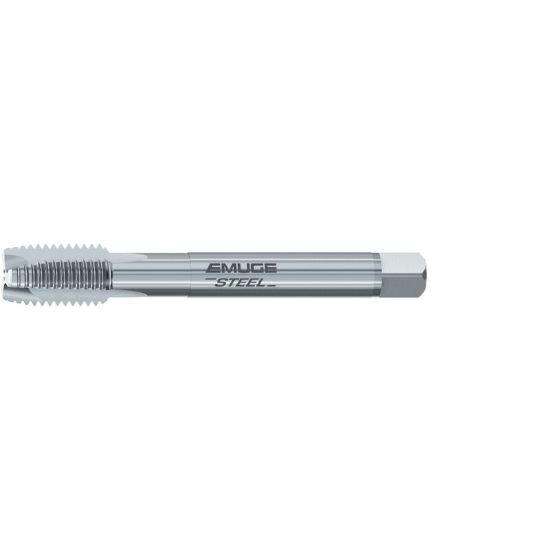

Picture of Emuge C0208930.0116 Tap Plug M16-2.00mm 7G Metric DIN/DIn HSSE

Emuge C0208930.0116 Tap Plug M16-2.00mm 7G Metric DIN/DIn HSSE

Part Number: EMUC0208930.0116 ISO: C0208930.0116

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158959
Vendor: Sussex Tool and Supply
$107.94
EMUGE C0208930.0116 M16x2.00MM Over Sized Plug Plug 4P-5P HSSE Uncoated 7G Metric Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Overall Length 4.3307 110.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4720 11.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.00MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M16
Thread Limit 7G
Tap Style Over Sized Plug
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Tap Square 0.3600
Tap Chamfer 4P-5P
