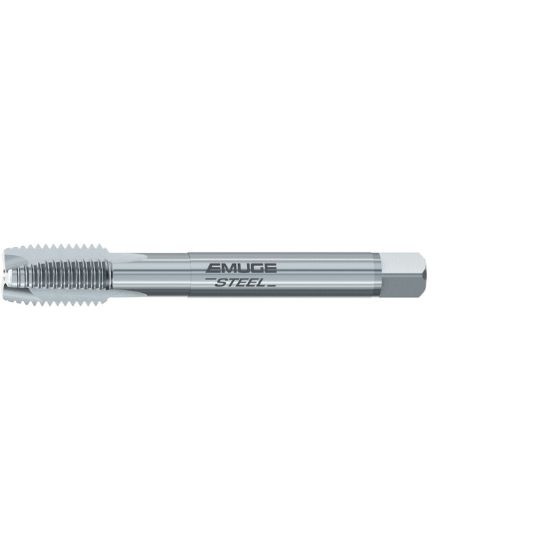

EMUGE C0208920.0251 Tap M8-1.00MM Plug Metric DIN/DIN 4P-5P Cobalt HSSE

ISO: C0208920.0251

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0208920.0251
Delivery date: 3-5 days
$65.72

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Over Sized Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Size M8
Thread Type Metric
Tap Type Plug
Thread Limit 6G
Dimension Standard DIN/DIN
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Over Sized Plug
Overall Len 3.5433 90.00MM
Tool Material Steel
Tap Chamfer 4P-5P
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Length Type Standard
Flute Direction STRAIGHT
Cut Rating <42HRC Steel, Stainless Steel
Tap Square 0.2380
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
