  • EMUGE C0208400.0330 Tap M14-1.25MM Plug Metric DIN/DIN 4P-5P Cobalt HSSE TiN

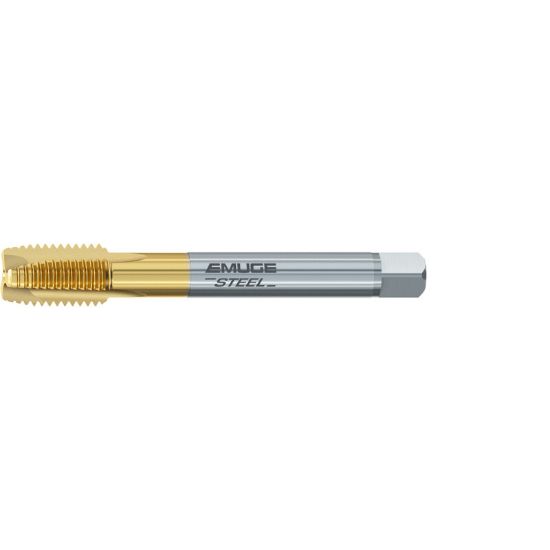

Picture of EMUGE C0208400.0330 Tap M14-1.25MM Plug Metric DIN/DIN 4P-5P Cobalt HSSE TiN

EMUGE C0208400.0330 Tap M14-1.25MM Plug Metric DIN/DIN 4P-5P Cobalt HSSE TiN

ISO: C0208400.0330

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0208400.0330
Delivery date: 3-5 days
$130.61

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Made In USA No
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Standard DIN/DIN
Flutes/Inserts 3
Overall Len 4.3307 110.00MM
Drill Range 0.5000 12.70MM - 0.5130 13.03MM
Thread Size M14
Length Type Standard
Tap Square 0.3220
Tap Type Plug
Thread Type Metric
Shank/Pilot Dia 0.4330 11.00MM
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Limit 6H
Thread Pitch 1.25MM
Tool Material Steel
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
