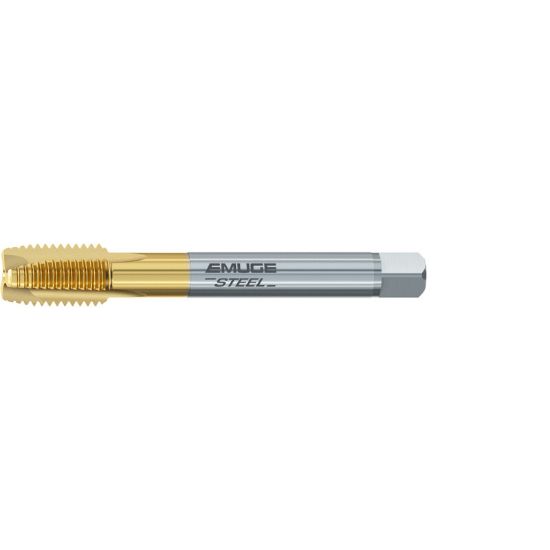

EMUGE C0208400.0250 Tap Plug M8-0.75MM 6H Metric DIN/DIN HSSE TiN

ISO: C0208400.0250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0208400.0250
Delivery date: 3-5 days
$90.58

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.2843 7.22MM - 0.2921 7.42MM
Tap Style Cut Spiral Point
Thread Size M8
Cut Rating <42HRC Steel, Stainless Steel
Tap Square 0.2380
Tap Type Plug
Thread Type Metric
Length Type Standard
Thread Pitch 0.75MM
Tool Material Steel
Tap Chamfer 4P-5P
Dimension Standard DIN/DIN
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Overall Len 3.5433 90.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
