  • EMUGE C0208400.0136 Tap M36-4.00MM Plug Metric DIN/DIN 4P-5P Cobalt HSSE TiN

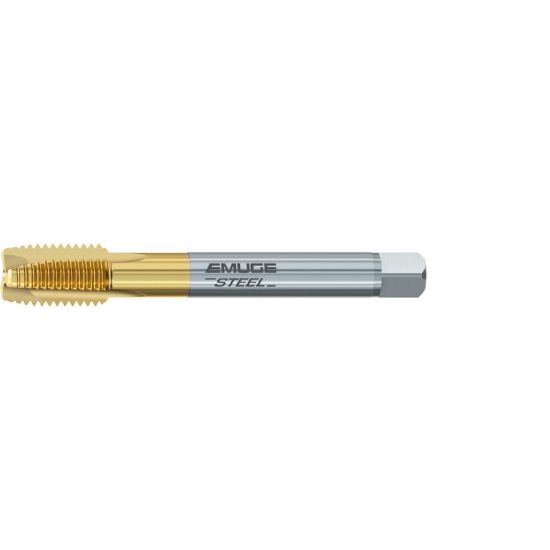

Picture of EMUGE C0208400.0136 Tap M36-4.00MM Plug Metric DIN/DIN 4P-5P Cobalt HSSE TiN

EMUGE C0208400.0136 Tap M36-4.00MM Plug Metric DIN/DIN 4P-5P Cobalt HSSE TiN

ISO: C0208400.0136

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0208400.0136
Delivery date: 3-5 days
$705.36

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Square 0.9250
Tap Chamfer 4P-5P
Dimension Standard DIN/DIN
Drill Range 1.2535 31.84MM - 1.2945 32.88MM
Thread Pitch 4.00MM
Thread Limit 6H
Thread Size M36
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Type Metric
Tap Type Plug
Flute Direction STRAIGHT
Cut Rating <42HRC Steel, Stainless Steel
Shank/Pilot Dia 1.1024 28.00MM
Overall Len 7.8740 200.00MM
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
