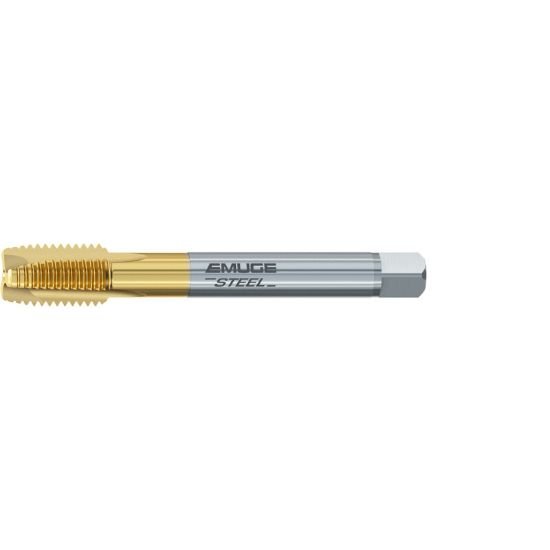

Picture of Emuge C0208400.0471 Tap M27-2.00mm Plug Metric DIN/DIn 4P-5P Cobalt HSSE TiN

Emuge C0208400.0471 Tap M27-2.00mm Plug Metric DIN/DIn 4P-5P Cobalt HSSE TiN

Part Number: EMUC0208400.0471 ISO: C0208400.0471

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159029
Vendor: Sussex Tool and Supply
$389.61
EMUGE C0208400.0471 M27x2.00MM Cut Spiral Point Plug 4P-5P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Coating TIN
Overall Length 5.5118 140.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7870 19.99MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.00MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M27
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.9862 25.05MM - 1.0016 25.44MM
Tap Square 0.6720
Tap Chamfer 4P-5P
