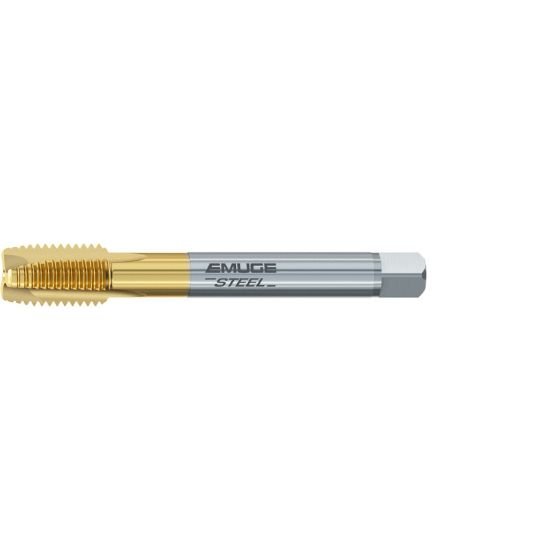

Picture of Emuge C0208400.0470 Tap M27-1.50mm Plug Metric DIN/DIn 4P-5P HSS HSSE TiN

Emuge C0208400.0470 Tap M27-1.50mm Plug Metric DIN/DIn 4P-5P HSS HSSE TiN

Part Number: EMUC0208400.0470 ISO: C0208400.0470

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159028
Vendor: Sussex Tool and Supply
$387.32
EMUGE C0208400.0470 M27x1.50MM Cut Spiral Point Plug 4P-5P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Coating TIN
Overall Length 5.5118 140.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7870 19.99MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M27
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 1.0016 25.44MM - 1.0169 25.83MM
Tap Square 0.6720
Tap Chamfer 4P-5P
