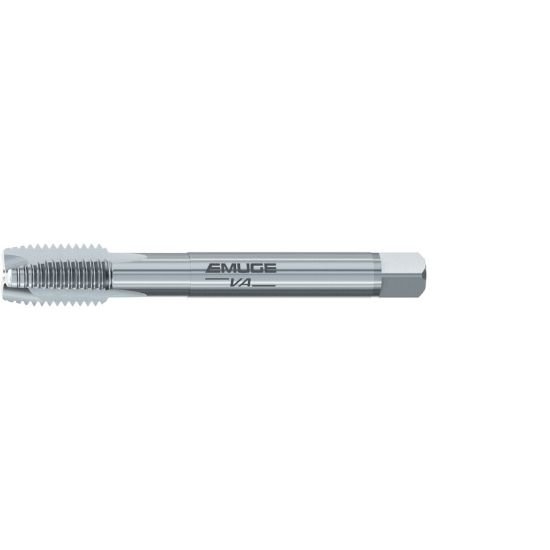

Emuge C0203000.1060 Tap M16-2.00mm Plug LK-M DIN/DIn 4P-5P HSS HSSE Nitride

Part Number: EMUC0203000.1060 ISO: C0203000.1060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158573
$177.42
EMUGE C0203000.1060 M16x2.00MM Spiral Lock Plug 4P-5P HSSE Nitride BT LK-M Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Nitride
Overall Length 4.3307 110.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4720 11.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.00MM
Thread Type LK-M
Flute Direction STRAIGHT
Thread Size M16
Thread Limit BT
Tap Style Spiral Lock
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.6496 16.50MM
Tap Square 0.4330
Tap Chamfer 4P-5P
