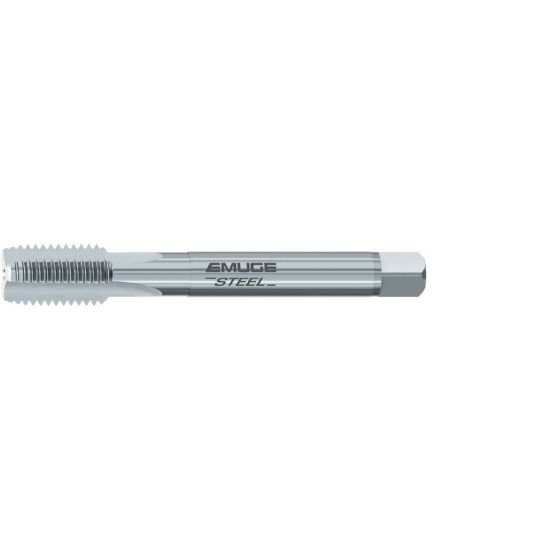

EMUGE C0101001.4046 Tap 1-1/2-11.00TPI Pipe BSP DIN/DIN 2.0P-3.0P HSS HSSE

ISO: C0101001.4046

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0101001.4046
Delivery date: 3-5 days
$790.57

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Straight Flute Pipe, Pipe Tapping, Tapping
Made In USA No
Package Size 1
Shipping State Massachusetts
Dimensional Specifications
Dimension Standard DIN/DIN
Tap Style Pipe Straight Flute
Tool Material Steel
Drill Range 1.7815 45.25MM
Thread Type BSP
Length Type Standard
Flute Direction STRAIGHT
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Pipe
Tap Square 1.1410
Tap Chamfer 2.0P-3.0P
Thread Pitch 11.00TPI
Thread Limit PIPE
Shank/Pilot Dia 1.4170 35.99MM
Overall Len 7.4803 190.00MM
Thread Size 1-1/2"
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
