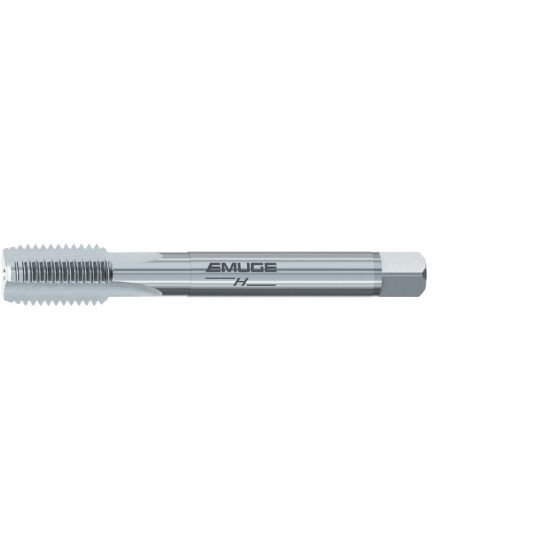

Emuge C0100501.4042 Tap 1-11.00TPI Pipe BSP DIN/DIn 2.0P-3.0P Cobalt HSSE Nitride

Part Number: EMUC0100501.4042 ISO: C0100501.4042

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157878
$373.30
EMUGE C0100501.4042 1"x11.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE Nitride PIPE BSP Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Nitride
Overall Length 6.2992 160.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.9840 24.99MM
Flutes/Inserts 5
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 11.00TPI
Thread Type BSP
Flute Direction STRAIGHT
Thread Size 1"
Thread Limit PIPE
Tap Style Pipe Straight Flute
Tap Type Pipe
Dimension Standard DIN/DIN
Tap Drill Range 1.2106 30.75MM
Tap Square 0.7870
Tap Chamfer 2.0P-3.0P
