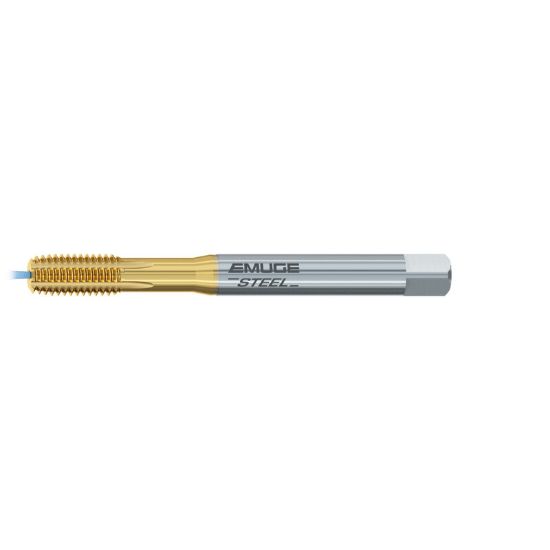

EMUGE BW921400.5009 Tap 1/4-20.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant HSSE TiN

ISO: BW921400.5009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBW921400.5009
Delivery date: 3-5 days
$81.47

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Coating TiN
Made In USA No
Package Size 1
Shipping State Massachusetts
Dimensional Specifications
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Thread Size 1/4"
Thread Limit 2B
Flute Direction STRAIGHT
Length Type Standard
Tool Material Steel
Thread Pitch 20.00TPI
Thread Type NC/UNC
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 3.1490 79.98MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Tap Square 0.1910
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
