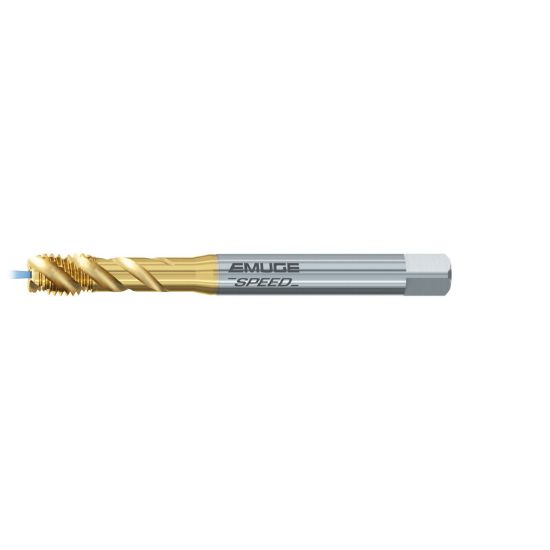

EMUGE BW553700.5041 Tap Mod Bottom No.10-32.00TPI 2B NF/UNF/UNEF DINSI Coolant HSSE TiN

ISO: BW553700.5041

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBW553700.5041
Delivery date: 3-5 days
$74.23

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Cut Tapping, Mod Bottom Tapping
Shipping State Massachusetts
Coating TiN
Performance Rating High Performance
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Thread Size No.10
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Machine Side Connection Type Tap Collet
Tool Material Steel
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 2.0P-3.0P
Thread Limit 2B
Overall Len 2.7560 70.00MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
