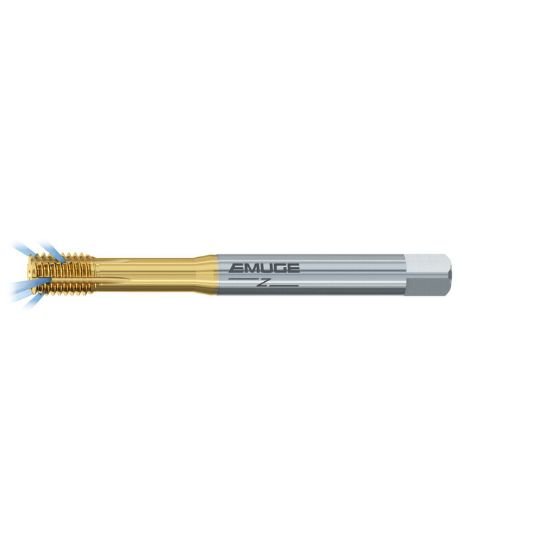

Picture of Emuge BW10F000.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant Carbide HSSE TiN

Emuge BW10F000.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant Carbide HSSE TiN

Part Number: EMUBW10F000.5011 ISO: BW10F000.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157339
Vendor: Sussex Tool and Supply
$167.44
EMUGE BW10F000.5011 3/8"x16.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 3.9370 100.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3810 9.68MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 3/8"
Thread Limit 2B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Square 0.2860
Tap Chamfer 2.0P-3.0P
