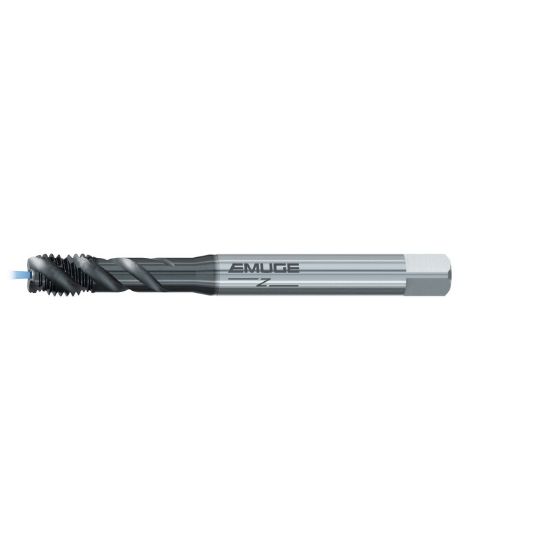

EMUGE BU99C410.5043 Tap 1/4-28.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Coolant HSSE GLT-1

ISO: BU99C410.5043

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU99C410.5043
Delivery date: 3-5 days
$84.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Package Size 1
Coating GLT-1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Type NF/UNF/UNEF
Thread Size 1/4"
Thread Limit 3B
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Thread Pitch 28.00TPI
Flutes/Inserts 3
Shank/Pilot Dia 0.2550 6.48MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
