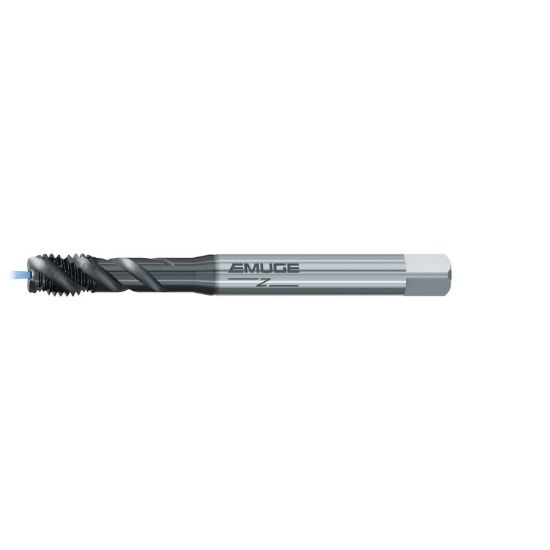

EMUGE BU99C410.5041 Tap Bottoming No.10-32.00TPI 3B NF/UNF/UNEF DINSI Coolant HSSE GLT-1

ISO: BU99C410.5041

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU99C410.5041
Delivery date: 3-5 days
$77.16

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Shipping State Massachusetts
Application Cut Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Coating GLT-1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Dimension Standard DINSI
Shank/Pilot Dia 0.1940 4.93MM
Thread Size No.10
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Limit 3B
Thread Type NF/UNF/UNEF
Machine Side Connection Type Tap Collet
Overall Len 2.7560 70.00MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
